The Municipal GIS Playbook: Architecting ArcGIS Enterprise for Public Agencies

TL;DR — Modern municipal GIS is no longer a map department; it is a foundational data platform that every line of business in a city government depends on. This playbook describes the architecture public agencies should adopt in 2026: a federated ArcGIS Enterprise core, a governed service perimeter, a cloud-native deployment model, and an implementation cadence that survives the rhythm of public procurement.

Most municipal GIS programs were built one layer at a time. A parcel file came from the tax office. A road network arrived from public works. A zoning map was drawn in the planning department. Each department owned its data, its software, and its people. That model worked when a map was a deliverable. It does not work when a map is a service — consumed by permit portals, field inspection apps, utility SCADA dashboards, 311 systems, and public-facing viewers that the city’s citizens treat as a product.

Public agencies that have crossed the threshold from “map department” to “geospatial platform” share a common architecture. This post lays it out.

What Modern Municipal GIS Looks Like

A mature municipal GIS is not defined by the number of layers it holds. It is defined by five properties, each of which corresponds to a specific architectural decision.

1. A Single Authoritative Source for Every Dataset

There is exactly one official parcel layer. There is exactly one official road centerline. There is exactly one official address point dataset. Every downstream consumer — internal or external — reads from that source or from a sanctioned derivative. The moment a second, unsanctioned copy of the parcel layer appears on an engineer’s desktop, the governance model has failed and the cleanup cost compounds for years.

2. A Federated ArcGIS Enterprise Core

The authoritative data is published through ArcGIS Enterprise — Portal for ArcGIS federated with one or more ArcGIS Server sites, backed by ArcGIS Data Store and an enterprise geodatabase on PostgreSQL or Microsoft SQL Server. Federation is not a technical detail; it is the governance mechanism that ties identity, sharing, and content management together across the entire GIS stack. A federated Enterprise means a single sign-on, a single content catalog, and a single place to reason about who has access to what.

3. Services, Not Files, as the Unit of Delivery

Nothing is shipped as a shapefile or a file geodatabase. Every dataset is published as an ArcGIS Feature Service, Map Service, Image Service, or Vector Tile Service. Downstream systems consume those services over HTTPS with authenticated tokens. Files are generated on demand, as a derivative of the authoritative service — never as the source of truth. This single decision collapses dozens of ad-hoc data-delivery workflows into one uniform pattern.

4. A Governed Perimeter for External Consumption

Agencies share data with contractors, partner authorities, and the public. That sharing sits behind a governance layer: per-consumer API tokens, referrer and IP allowlists, per-request audit logs with queryable retention, and rate limits calibrated to the upstream service’s capacity. The goal is not to prevent sharing. The goal is to make sharing provable — so the GIS operator can answer, in one query, which consumer accessed which service on which date.

5. Cloud-Native Deployment with Infrastructure as Code

In 2026 the default deployment target for new municipal GIS programs is a public or sovereign cloud, provisioned through declarative infrastructure (Terraform, CloudFormation, or the agency’s internal IaC platform). The benefits that moved the rest of government IT to the cloud — reproducibility, disaster recovery, elastic capacity, reduced operational tax — apply to ArcGIS Enterprise without modification. On-premises deployments still have a role in classified or air-gapped contexts, but for the typical municipal workload the cloud has won.

The Reference Architecture

Data Tier

An enterprise geodatabase on PostgreSQL (with the PostGIS extension enabled for non-ArcGIS access paths) is the canonical store for authoritative municipal data. ArcGIS Data Store handles tile and scene caching, relational storage for hosted feature services, and spatiotemporal data for IoT and real-time feeds. Backups, point-in-time recovery, and cross-region replication are configured at the database layer, not the application layer.

Service Tier

ArcGIS Server sites, federated with Portal for ArcGIS, expose the data as services. Production municipal deployments typically run at least three Server sites:

• A hosting site — backed by Data Store, serving hosted feature and tile services.
• A reference site — serving read-only published services from the enterprise geodatabase.
• A raster site — serving orthoimagery, elevation, and image services, often with its own compute profile.

Separating service types across Server sites lets the agency tune compute, scale independently, and contain outages.

Portal and Identity

Portal for ArcGIS is the content catalog, the sharing surface, and the identity boundary. Production portals integrate with the agency’s enterprise identity provider (Azure Entra ID, Okta, or an on-premises ADFS) through SAML or OpenID Connect. Named-user licensing, role-based access control, and group-based sharing all flow from the identity layer — not from a local user table managed by the GIS operator.

Governance Perimeter

Public-facing services sit behind a governance layer that handles per-consumer authentication, audit logging, and rate limiting. This layer is the accountability surface between the agency’s internal ArcGIS deployment and everything that consumes it from outside. It is also the layer where compliance evidence is generated — the queryable audit trail that internal security teams and external auditors will eventually ask for.

Integration Tier

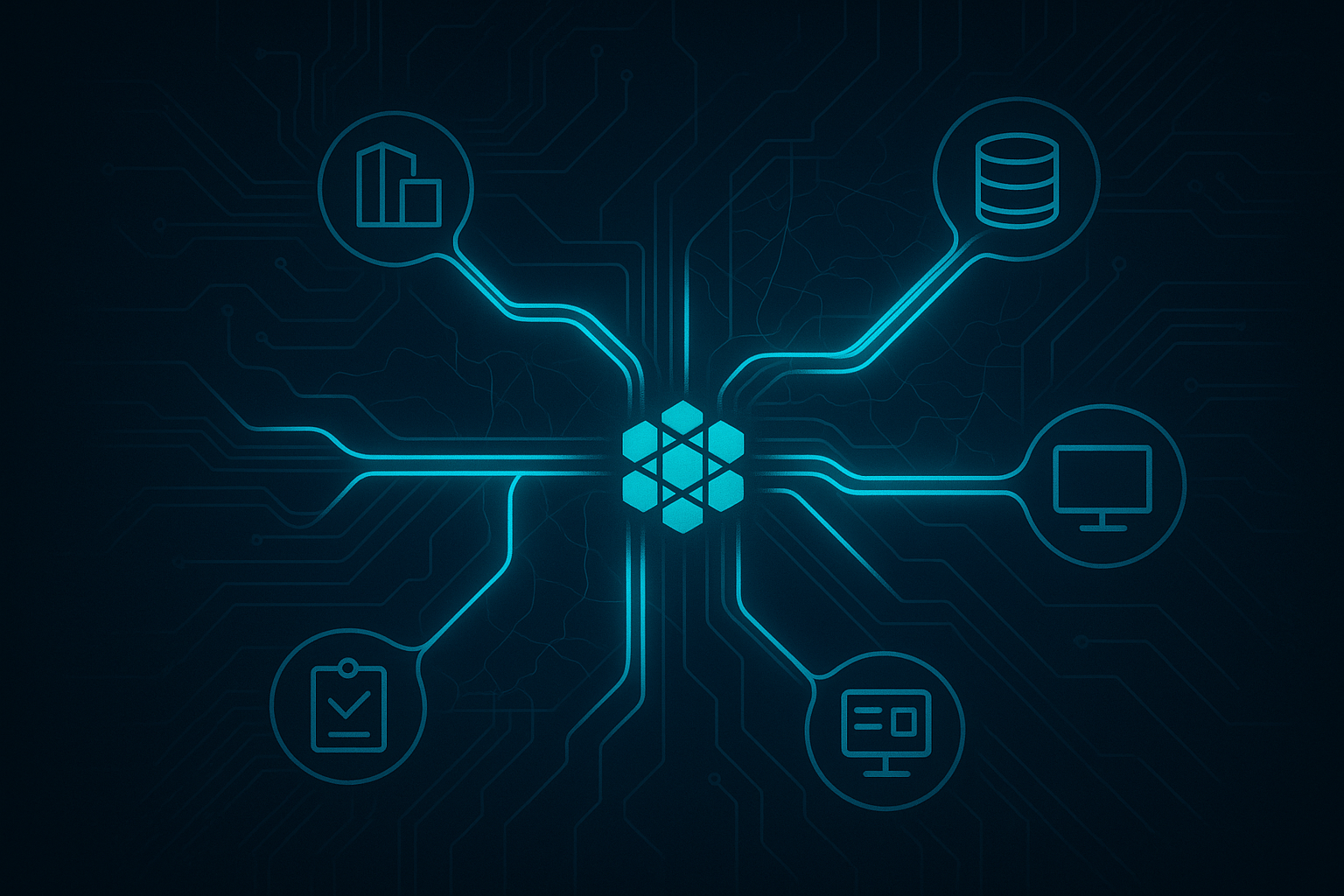

Every municipal GIS connects, at minimum, to a permit system, a work-order system, a public-facing 311 or service-request platform, and the finance and asset-management systems that depend on location. Those integrations are not point-to-point FTP jobs. They are declarative, observable data pipelines — typically built around the ArcGIS REST API, ArcGIS Data Interoperability, or a workflow engine like Apache Airflow — with clear lineage and the ability to replay a failed run.

What a Serious Municipal Deployment Costs — and What It Returns

Procurement officers are right to be skeptical of ROI claims in GIS. The honest answer is that the returns are real, but they are diffuse — spread across many departments, many workflows, and many years. The public record does contain credible numbers:

• Camrose County, Alberta, reported approximately CAD 63,000 in annual savings and a 233% ROI after replacing paper-based municipal workflows with a cloud-based GIS platform, according to a published PSD Citywide case study.
• The Municipal Authority of Westmoreland County replaced days of project-status reporting with minutes, and elevated data-accuracy confidence across engineering and operations, using ArcGIS Web AppBuilder, Operations Dashboard, and ArcGIS Collector.

The common pattern is that the largest returns come not from the GIS system itself, but from the other systems the GIS platform makes more accurate. When the permit system reads authoritative parcel data directly from a feature service, permit errors drop. When field crews capture work orders in an app backed by the same feature service, back-office reconciliation drops to zero. When the finance system ties asset values to authoritative asset geometries, audit findings drop. The GIS is rarely the line item with the biggest savings; it is the line item that makes every other line item cheaper.

An Implementation Cadence That Survives Procurement

Public procurement is slow for good reasons. A municipal GIS program has to be built in phases that each deliver verifiable value, so that the next phase can be defended to a council, a procurement committee, or an auditor. The cadence that works:

Discover

Audit existing systems, catalog data sources, interview the five or ten people in the agency who actually depend on geospatial data. Produce a written inventory of layers, owners, consumers, and known problems. This phase is short (weeks, not months) and its deliverable is a document, not software.

Architect

Design the authoritative data model, the federated Enterprise topology, the identity integration, the service portfolio, and the governance perimeter. Decide the cloud or on-premises target and the infrastructure-as-code substrate. Produce an architecture document, a deployment plan, and a cutover plan that names every downstream system that will be migrated from legacy data sources to the new services.

Build

Stand up the Enterprise environment in iterative cycles, typically one authoritative dataset at a time. Each iteration ends with a production-quality service, a migrated consumer, and a documented outcome. Avoid big-bang migrations — they are indefensible in a procurement context and they rarely survive contact with the agency’s operational reality.

Deploy

Cut consumers over to the new services with explicit parallel-run windows, train the operators who will run the platform after the integrator leaves, and establish the long-term support contract. The deliverable of the Deploy phase is an agency that can run its own GIS — not a dependency on the integrator.

Common Failure Modes

Municipal GIS programs fail in predictable ways. A short list, in order of how often we see them:

• Shapefiles in the architecture. If any production integration ships a shapefile or a file geodatabase as the unit of exchange, the authoritative-service model has leaked and the program is already drifting back to the old pattern.
• Local user accounts in Portal. If the GIS operator is creating users in Portal by hand instead of sourcing them from the agency’s identity provider, the access model is not governable and the first security review will say so.
• No audit trail on public services. If the answer to “who accessed this feature service last Tuesday” requires grepping NGINX logs, the answer is effectively “we do not know,” and that answer is no longer acceptable to information-security reviewers.
• A single monolithic ArcGIS Server. One Server site doing hosting, reference, and raster at the same time will be capacity-planned around the worst-case workload and will still fail during the next aerial-imagery refresh.
• No infrastructure as code. If the only way to rebuild the Enterprise environment is a senior engineer’s memory, the environment is not recoverable and the disaster-recovery plan is fictional.

Where Rodosto Fits

Rodosto Teknoloji designs and builds exactly this kind of platform for municipal, regional, and central-government GIS programs, as well as for utility, transport, and private enterprises that have grown past the file-geodatabase threshold. The work is the same in every case: an audited inventory, a governed ArcGIS Enterprise core, a services-not-files delivery model, a cloud-native deployment, and an integration fabric that turns the GIS into a load-bearing part of the agency’s operations rather than a map-production department.

If you operate a public-sector GIS program and the architecture above does not match what you have today, that gap is the work.
